Affordable, flexible and easy to install

Our modular post and rail system is affordable, low maintenance and easy-to-install. Posts, factory attached railing outlets and loose rails can be ordered in many different configurations, providing flexible layout and installation options for all types of applications.



Suitable for all types of applications

Our modular post and rail can be used in all types of applications. The product is often used at store front entries in conjunction with Alvarado turnstiles and gates to control pedestrian and shopping cart access in grocery and retail stores. Other typical uses include creating custom sized shopping cart corrals, permanent queue lines and dividing or controlling access to “off-limits” areas.


icon_CCQ_applications_grocery

Grocery Stores


icon_CCQ_applications_retail

Retail Stores


icon_CCQ_applications_wholesale

Club Stores


icon_applications_AP_homeimprovement

Home Improvement Stores


icon_applications_CCQ_foodservice

Food Service


icon_applications_CCQ_public

General Public Access



Heights and anchoring styles

img_hero_AP_VOGUE

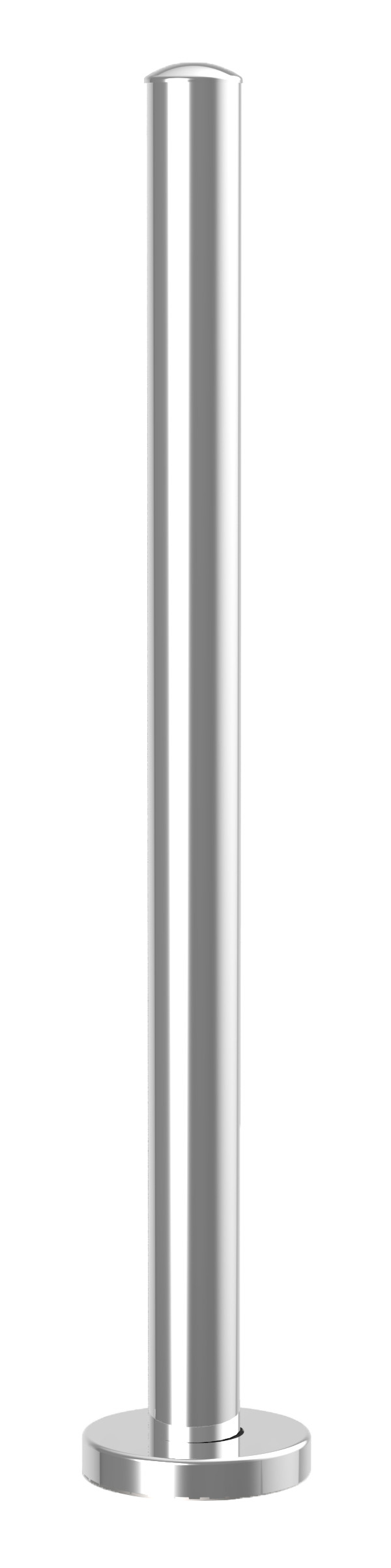

Vogue posts

Our most popular fixed-anchor posts are available with factory attached rail outlets in both double and triple rail configurations.

  • 2.25″ tube diameter | 5.5″ base diameter
  • 35″ and 44″ height double rail posts
  • 44″ height triple rail posts
  • 48″ height posts that allow shopping cart passage
  • Vogue anchoring (four expansion anchors)
  • Core drilled 35″ posts available
  • 35″ posts available in chrome, stainless steel (satin and mirror finish) and custom powder coat
  • 44″ and 48″ posts available in chrome only
img_hero_AP_SPACESAVER

Space Saver Posts

Offer a smaller diameter base for applications where floor space is limited. Space Saver posts are available with factory attached rail outlets for double rail applications.

  • 2.25″ tube diameter | 3.5″ base diameter
  • Space Saver anchoring (single 1″ expansion anchor)
  • 35″ height double rail posts
  • Available in chrome, stainless steel (satin and mirror finish) and custom powder coat

Railing

Connects to post outlets and is secured in place with a set screw. Railing can be ordered to size or cut in the field as required.

  • 1.75″ outside diameter
  • Available in 1′ to 6′ lengths in 3″ increments (e.g. 12″, 15″ 18″)
  • Additional lengths of 84″, 96″ and 120″ are also available
  • Available in chrome, stainless steel (satin and mirror finish) and custom powder coat

img_hero_CCQ_RAIL

Standard Post and Rail Configurations

img_ortho_CCQ_PNR_VOGUE-35

Separate outlets can be purchased and field installed if required.

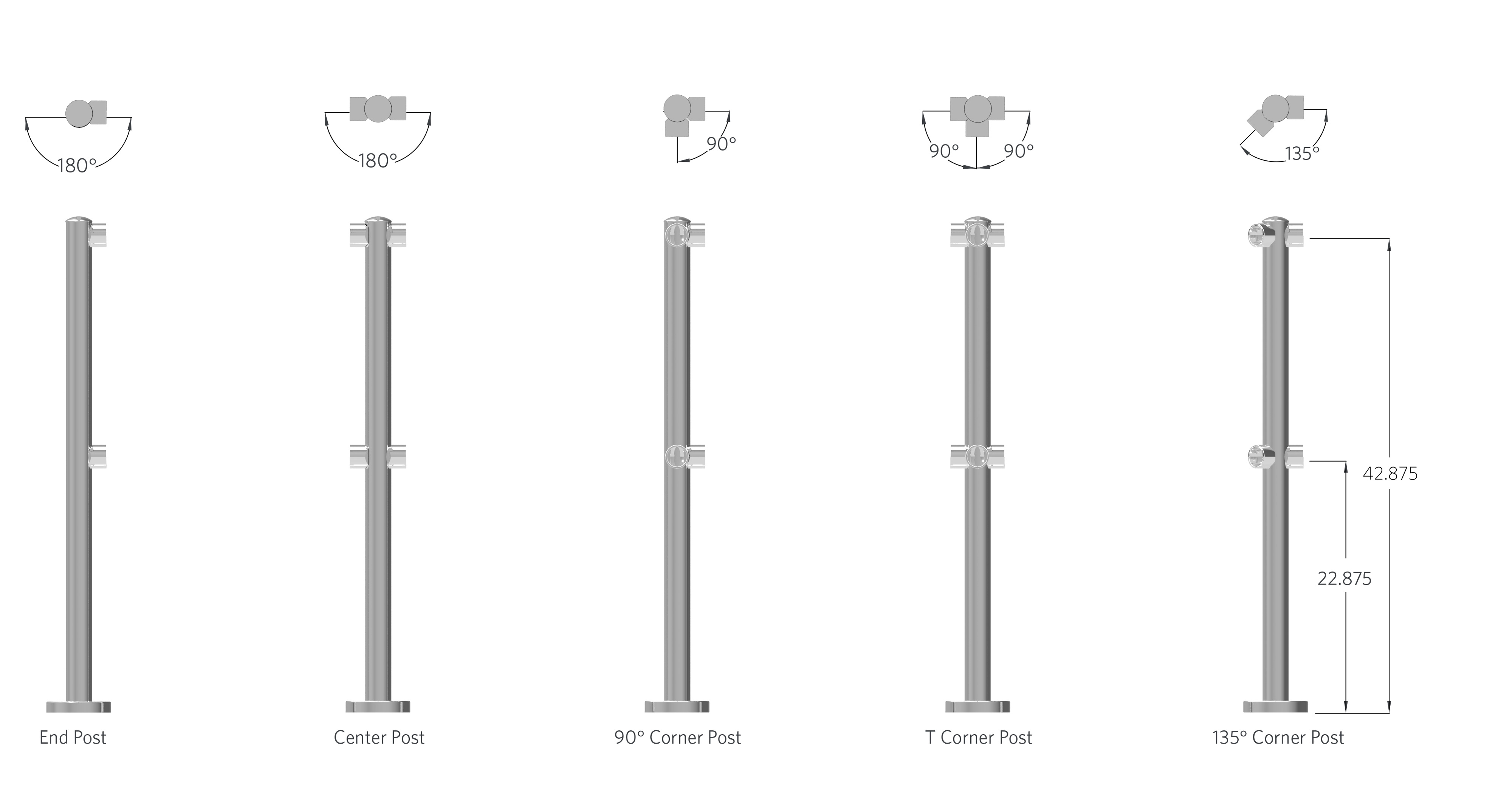

img_ortho_CCQ_PNR_VOGUE-44D

Separate outlets can be purchased and installed to accommodate a specific design.

img_ortho_CCQ_PNR_VOGUE-44T

Separate outlets can be purchased and installed to accommodate a specific design.

img_ortho_CCQ_PNR_VOGUE-48

Separate outlets can be purchased and installed to accommodate a specific design.

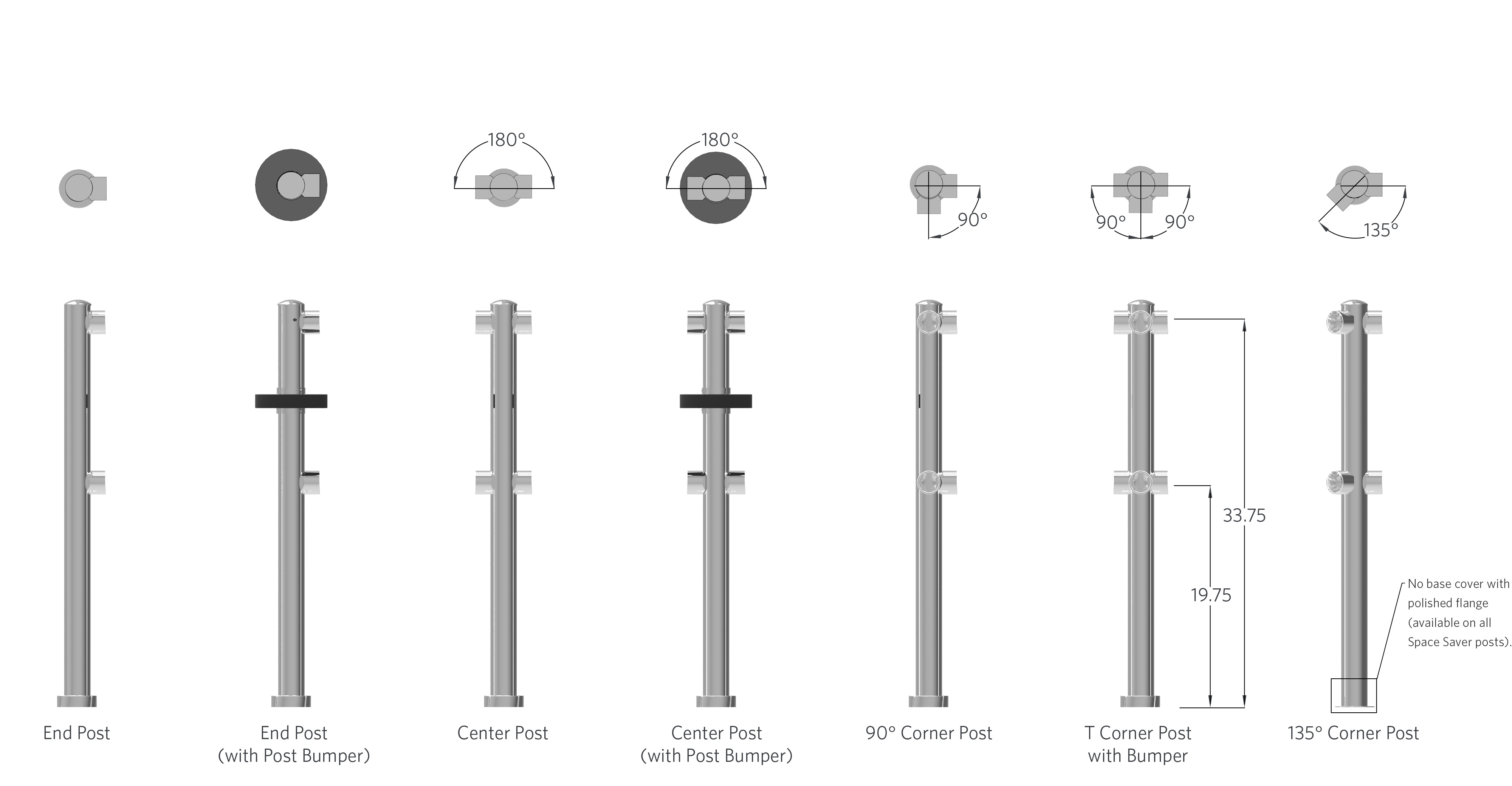

img_ortho_CCQ_PNR_SS-35

Separate outlets can be purchased and installed to accommodate a specific design.

img_ortho_CCQ_PNR_VOGUE-42

Separate outlets can be purchased and installed to accommodate a specific design.

Post Anchoring Options

Vogue

img_anchor_APQ_PNR_VOGUE

Vogue anchoring

Zenith

img_anchor_APQ_PNR_ZENITH

Zenith anchoring
(Combines Vogue and Space Saver anchoring)

Space Saver

img_anchor_APQ_PNR_SS

Space Saver anchoring

REO Kit

img_anchor_APQ_PNR_REO

Makes any Vogue style post removable

Mitigating shoplifting losses is easier than you might think

U.S. retailers attribute approximately 33% of their company’s inventory shrinkage to shoplifting. The National Retail Security Survey report estimates that shoplifting cost American retailers a staggering $14.6 billion in 2012 alone.

Alvarado’s modular post and railing systems combined with our turnstiles and gates are inexpensive and effective tools to reduce theft and improve your bottom line. Our products allow you to create patron traffic flow patterns into and out of your store, and within your store, that channel entering patrons toward desirable merchandise areas, and exiting patrons toward check stands and other monitored areas. Customers are continually amazed at how our products both enhance store operations and reduce shrinkage.

Added Benefits:

  • Inexpensive and highly effective
  • Orderly patron flow and queuing
  • Ultimate design flexibility
  • Many alternative uses (e.g. cart corrals, gap fill around turnstiles)

img_config_aerial_APQ_RPG-RWT_MT-CSG

Deter shoplifting by directing exiting traffic through checkout lanes.

Modular post and rail has many uses

Whether your goals are to direct pedestrian and shopping cart traffic, create shopping cart storage areas, block or segment areas of your facility – or all of the above – our modular post and rail are inexpensive and flexible tools to help you achieve your objectives. Just a few examples of how our products can be used are shown below.

Need assistance? We can help. Our experienced sales and customer service personnel have dozens of years of real world experience and are available to assist with ideas, options, layouts and answers to your questions.

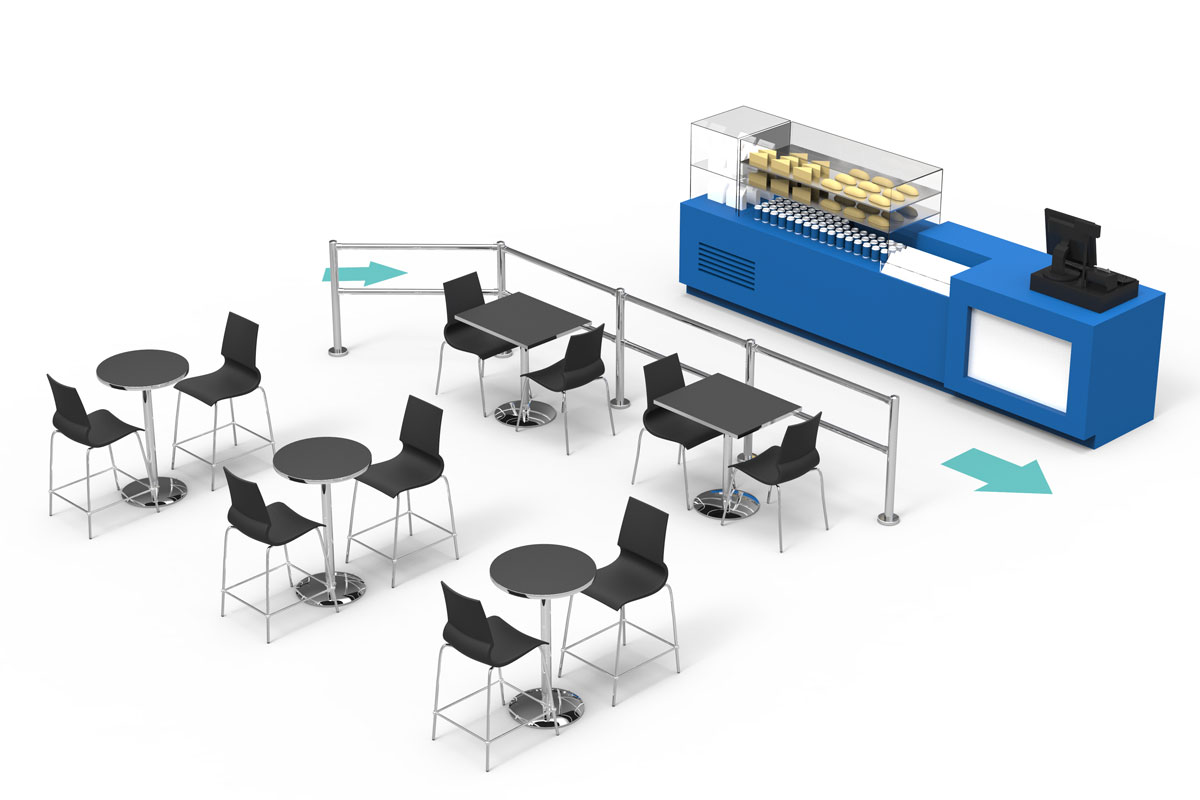

Provide orderly patron flow in many areas, including cafeterias and retail dining areas.

img_config_tab_CCQ_PNR_2

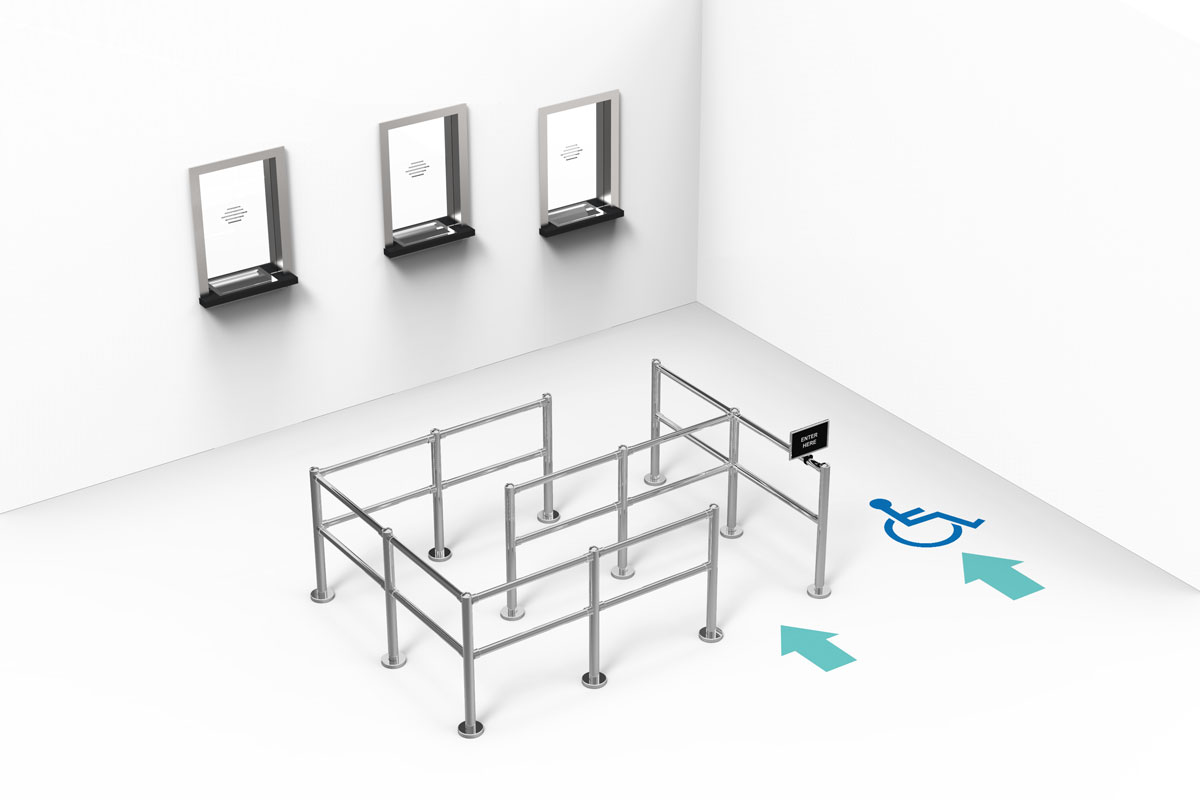

Banks, stores, hotels, stadiums and airports are just a few of the environments where our modular post and rail can provide organized queue lines.

img_config_tab_CCQ_PNR_1

Vogue posts and railing installed with retail turnstile and pedestrian gate configured to direct exiting traffic through checkout lanes.

img_config_tab_CCQ_CFG_MT_2

Our modular post and rail system is ideal for configuring indoor cart corrals in a retail environment.

img_config_tab_CCQ_CFG_MT_1

Alvarado always recommends that local code requirements be checked before ordering and installing products used for public entry/exit access purposes.

Accessories

Post Bumper Guard

img_CCQ_accessories_POSTBUMPERGUARD

Attaches to any 2.25″ post to safeguard posts from impact damage. The PBG has a 5.5″ outside diameter and includes a pair of rings with set screws to secure the guard to the post.

Wall Flange

img_CCQ_accessories_WALFLANGE

The wall flange allows our railing to attach directly to walls, eliminating the need for a post when space is limited. Available in bright chrome and custom powder coat finishes.

Zenith Anchoring Kit

img_accessories_APQ_PNB_ZENITH

Zenith Anchoring Kit combines the Vogue and Space Saver post anchoring options. Ideal for installations that require additional stability. Available for 35″, 44″ and 48″ posts.


Product downloads

Asset Protection and Queuing Catalog

Asset Protection and Queuing Catalog

Download
Post and Rail Datasheet

Post and Rail Datasheet

Download
Vogue Post Descriptive Specifications

Vogue Post Descriptive Specifications

Download

Space Saver Post Descriptive Specifications

Space Saver Post Descriptive Specifications

Download
Space Saver Post Descriptive Specifications

Space Saver Post Descriptive Specifications

Download

Space Saver Post Plan & Elevation Drawing (35″ height)

Space Saver Post Plan & Elevation Drawing (35″ height)

Download

SpaceSaver Post 35 Outlet Configuration

SpaceSaver Post 35 Outlet Configuration

Download


Vogue Post 44 Outlet Configuration

Vogue Post 44 Outlet Configuration

Download

Vogue Post 44 DR Outlet Configuration

Vogue Post 44 DR Outlet Configuration

Download

Vogue Post 48 Outlet Configuration

Vogue Post 48 Outlet Configuration

Download


Visit our Resources page for additional product documentation and application photos.


Additional Information

Post configurations:

  • End post
  • Center post
  • Corner post

Rail configurations:

  • 135 degree corner post
  • 35″ double rail configuration
  • 44″ & 48″ triple rail configuration

 For interior applications:

  • Choose between modular post and rail or custom barrier sections (with glass infill)
  • Custom barrier sections fabricated from square or round tubing
  • Finishes available to match the installation application

Available finishes:

  • Mirrored chrome (stainless steel)
  • Satin chrome (stainless steel)
  • Custom powder coat

Additional options:

  • Post bumper guard – attaches to any 2.25″ post to safeguard posts and equipment from impact damage
  • Wall flange – allows railing to attach directly to wall

REO Anchoring Kit: Makes any Vogue style post removable – attaches to base with four screws.

Vogue to Zenith Conversion Kit: Anchoring kit for converting a Vogue to Zenith style post.

Click here for additional product resources related to our Modular Post and Rail Kits.
