Post and Bollard

Alvarado posts and bollards are a cost-effective way to protect expensive fixtures and equipment. A small investment in our asset protection products will yield big savings on maintenance and replacement costs of expensive cases, fixtures and other assets.

• Products for store interiors, backrooms and warehouses
• Fixed installed and removable products
• Inexpensive way to protect expensive assets

Front-of-Store

Store Backroom

Warehouses

General Fixture Protection

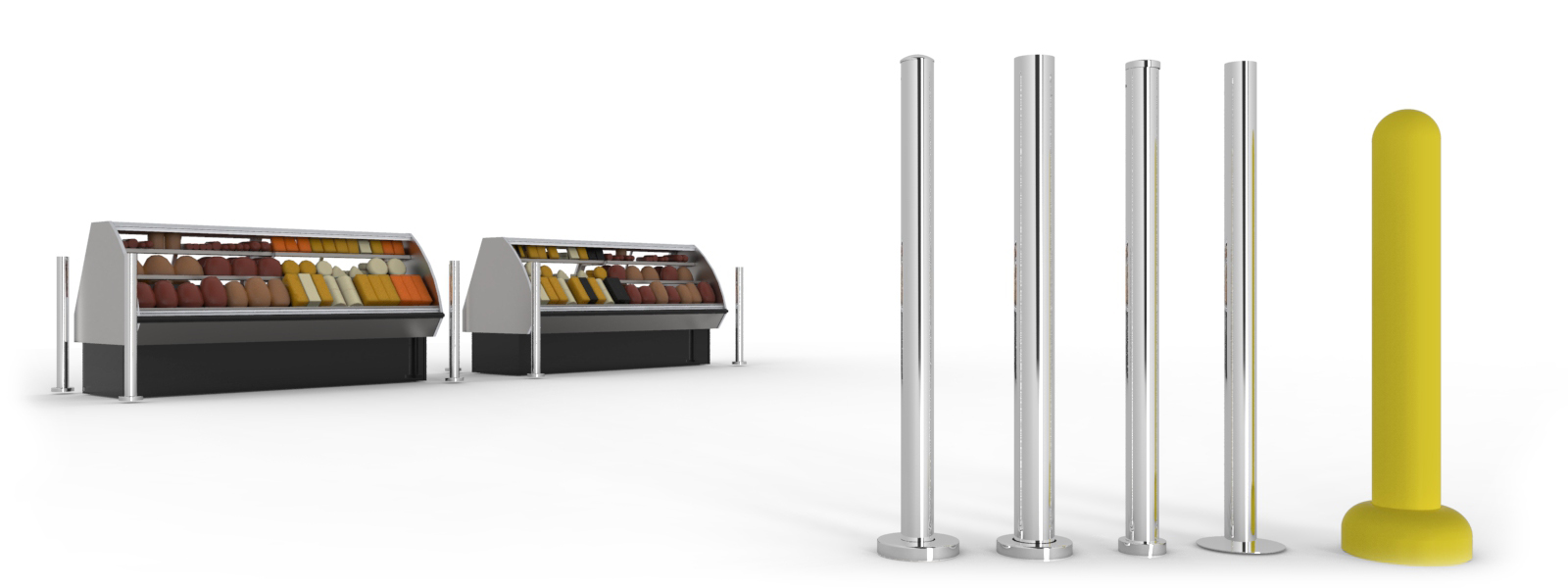

Whether your goals are to protect store display and refrigeration cases, backroom fixtures or warehouse assets, our extensive line of posts and bollards can help achieve your objectives. Just a few examples of how our products can be used are shown below.

Need assistance? We can help. Our experienced sales and customer service personnel have dozens of years of real world experience and are available to assist with ideas, options, layouts and answers to your questions.

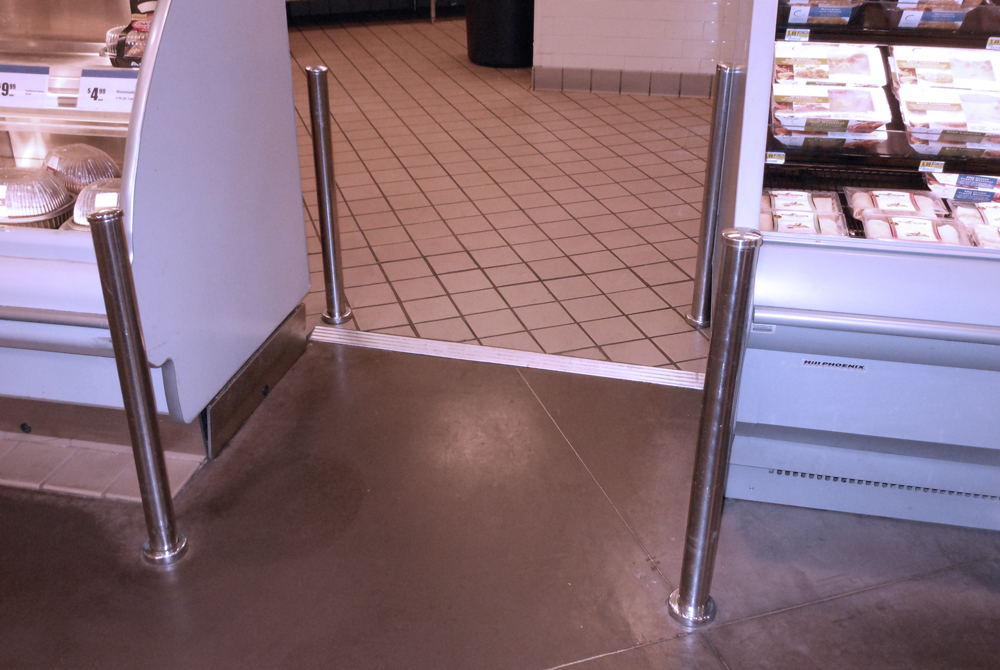

Alvarado Vogue posts protect expensive deli, meat and bakery cases cases from impact damage caused by shopping carts, pallet jacks and hand carts. They are also routinely used to protect doorways between backroom warehouse areas and the retail shopping floor, as well as wall corners and EAS equipment.

The posts are fixed anchored but can be converted into a removable post by employing our REO kit.

Anchoring options:

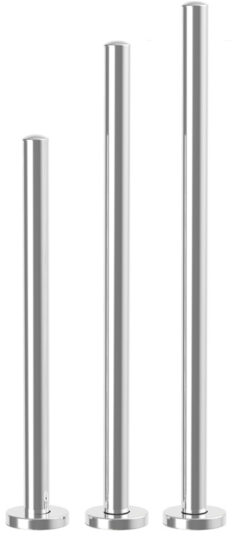

Vogue posts have a removable top cap allowing posts to be cut to custom heights in the field. Each post comes with a matching base cover to conceal installation anchors.

• 2.25″ tube diameter | 5.5″ base diameter
• 35″, 44″ and 48″ heights available
• Core drilled 35″ posts available
• 35″ posts available in chrome, stainless steel (satin and mirror finish) and custom powder coat
• 44″ and 48″ posts available in chrome, mirror stainless steel and custom powder coat

Vogue

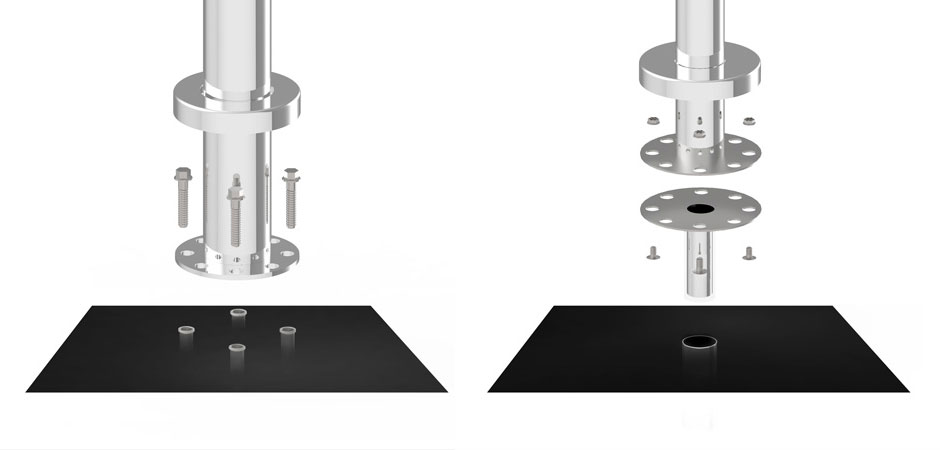

Standard fixed anchoring option uses four expanding floor anchor bolts (not included)

Zenith

Standard anchoring plus the added support of an all thread rod that extends down the interior of the post into a center expansion anchor.

REO

Makes any Vogue post removable – post inserts into a socket that has been drilled and set into the floor

Space Saver posts have a smaller diameter base for applications where floor space is limited. The posts install using an all thread rod that extends from the underside of the top cap down and into a single 1″ diameter center anchor.

• 2.25″ tube diameter | 3.5″ base diameter
• Available in 35″ height only
• Available in chrome, mirror stainless steel and custom powder coat
• Matching base cover included

Space Saver post anchoring:

Single 1″ diameter anchor rod that extends down the interior of the post

The C post is a fixed anchored post that provides heavy-duty protection for store fixtures and equipment.

Intended for use in environments where forklifts, pallet jacks, and hand trucks are used.

• 3″ tube diameter | 5.5″ base diameter
• 36″ height
• Bright chrome finish
• Welded top cap

C post anchoring:

(four expansion anchors) OR (optional REO kit)

The LS post is a removable post for use in in areas where post removal is periodically required. The post comes with a socket and socket cap. The post fits into the socket. When the post is removed, the socket cap covers the hole opening.

• 2″ tube diameter | 5.5″ base diameter
• 35″ height
• Satin stainless steel finish

LS post anchoring:

(core drilled – removable)

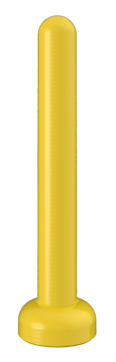

Our surface mount bollard is constructed from heavy gauge tubing and provides superior fixture protection in stores, backrooms and warehouses.

Surface mount bollards are often used to protect walk-in cooler boxes and freezers, electric panels, sinks and any other fixture that require protection from forklift and pallet jack impact.

• 4.5″ diameter
• 0.125″ wall thickness
• 32″ height
• Powder coat finish in safety yellow, traffic black or signal white

DSB surface mount bollard anchoring:

(four expansion anchors)
